Cutting-Edge Laser Projector System: Precision, Speed, and Efficiency Redefined

The SL Laser is a computer-controlled laser projector system that was designed with sophisticated software to ensure that the laser projects measuring points, lines and CAD drawings onto components and workpieces ready to be processed.

The ProDirector 7 features:

  • Precision high-speed scanner with push-pull output stages
  • Integrated embedded PC with 800 MHz ,4 GB memory.
  • Optimised receiver sensor of the reflection radiation
request a consult

Cutting-Edge Laser Projector System: Precision, Speed, and Efficiency Redefined

The SL Laser is a computer-controlled laser projector system that was designed with sophisticated software to ensures that the laser projects measuring points, lines and CAD drawings onto components and workpieces ready to be processed.

The ProDirector 7 features:

  • Precision high-speed scanner with push-pull output stages
  • Integrated embedded PC with 800 MHz ,4 GB memory.
  • Optimised receiver sensor of the reflection radiation
reqest a consult

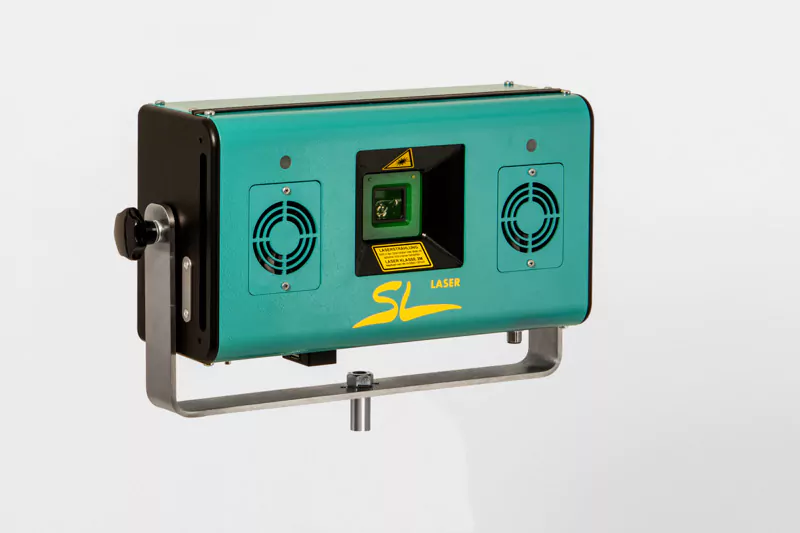

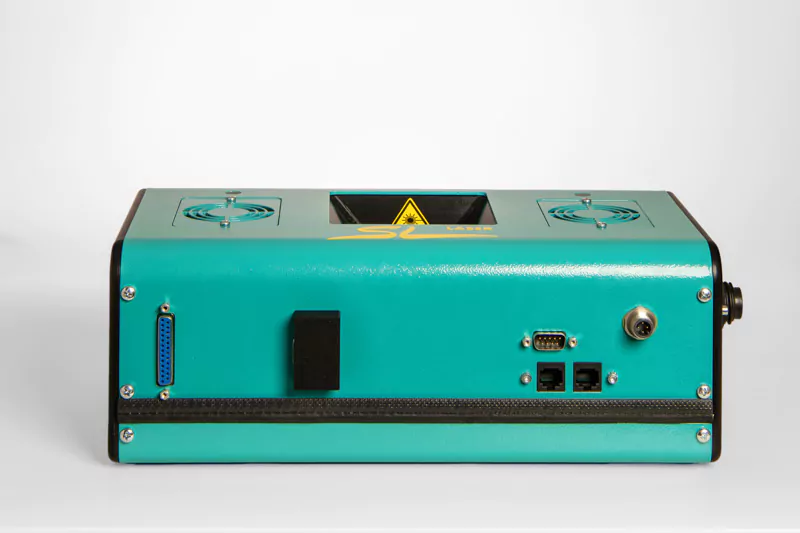

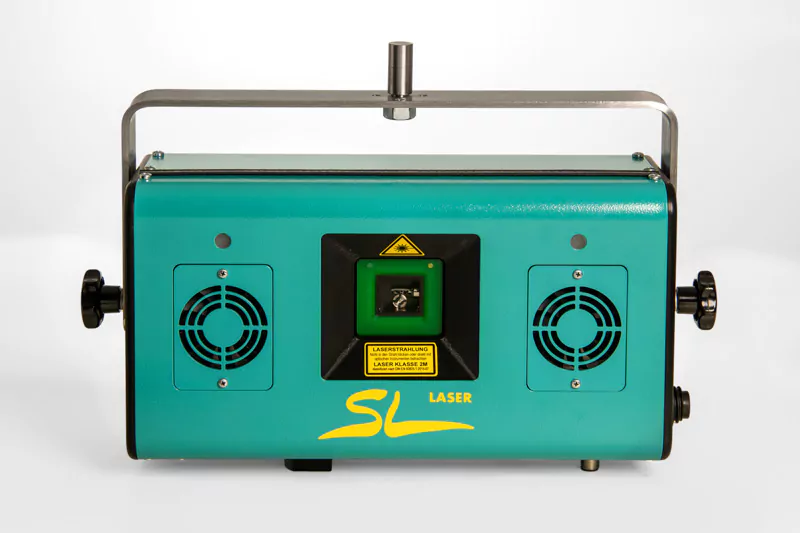

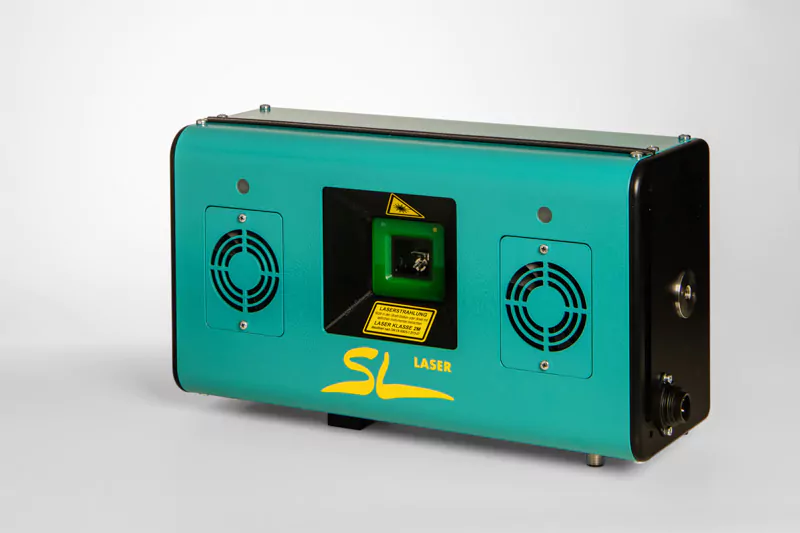

ProDirector 7 – 3D laser light projector

System specifications

  • Position Accuracy
    ±0.014“ (0.35 mm) at a distance of 15‘ over 17‘ x 17‘ (4.5 m x 4.5 m) area (equals to a 60° projection)
  • Field of View
    Horizontal: max. 80°, Vertical: max. 70°
  • Laser
    Green: 520-525 nm, FC-lasermodule
  • Laser Class 5 mW
    International: Class 2M per IEC/EN 60825-1:2015-07, CE certification
    USA: Class IIIa per 21CFR 1040 (CDRH)
  • Power Requirement
    80-240 VAC 50/60 Hz
  • Dimensions
    Length: 355 mm/18.90 “, Width: 120 mm/6.69 “, Height: 190 mm/11.42 “,
    Weight: 5,8 kg

Laser Projector Precision and Efficiency

Seamless Integration, Unparalleled Precision:
The Perfect Solution for Complex Workpieces and Free-Form Designs
