Aardwolf Truck Transport Collapsable ‘A’ Frame

Hauling granite and marble isn’t easy, and it certainly isn’t safe if you don’t have the right equipment. A well made transporting frame is needed for both the safety of the driver and other workers, as well as for the protection of the granite and marble.

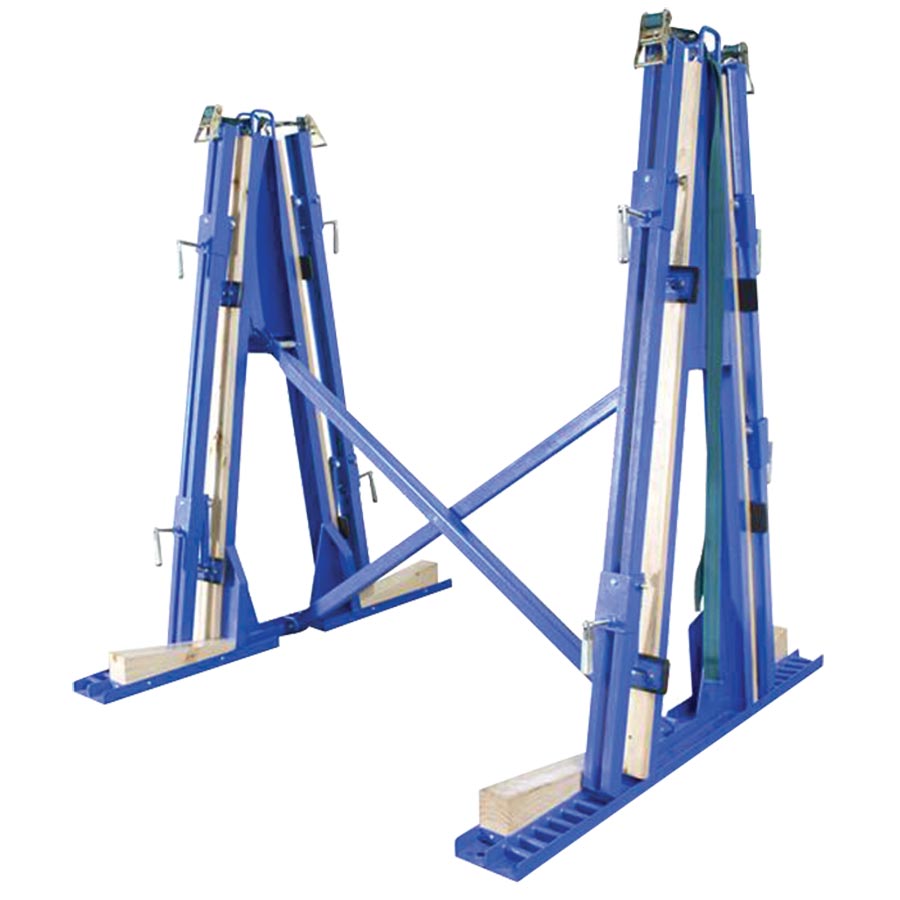

The sturdy Aardwolf Folding A-Frame for transporting stone has unique integrated vertical locking bars and ratchet locking straps designed to hold all material safely and securely, which eliminates risk to the operator and prevents damage to materials. The load is secured independently on each side by two vertical locking bars, which are inserted into brackets at the base of the frame and held by ratchet locking straps at the top. [read]

The unloaded frame can be folded up by simply withdrawing two spring loaded pins from the cross braces and lowering the three wheels at one end by means of a cam lever. The lowered wheels also allow the frame to be positioned on the tray of a truck or manually moved around the factory.

• Bolt holes in base of frame for optional securing of the Folding A-Frame to a vehicle
• Granite is secured by rubber pads mounted on cleats, which are in turn adjustable in height along the vertical locking bars
• Large hand-tightened wing nuts are used to tighten the cleats to the vertical locking bars
• Powder coat finish [/read]
