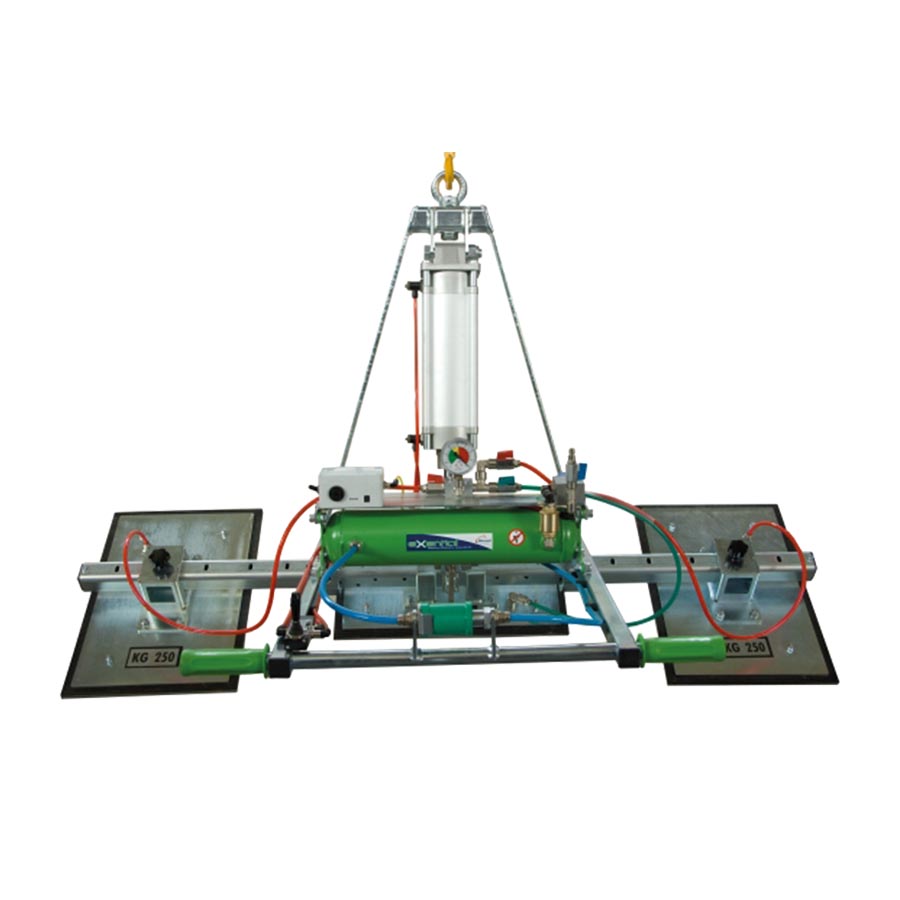

Manzelli Exential 3PN
Capacity from 375 to 1000kg / PNEUMATIC vertical-horizontal turnover from 0° to 90°
• Powered with compressed air ejector with aluminum silencer
• Pressure for the rotation at 6 bar
Air consumption 120l/min
• Welded steel structure
• Nr. 3 plates and counter suction plates in tropicalized steel
• Plate connection and disconnection by means of slider valve in nylon locking in the “connect position”
• Vacuum gauge in black metal crate with colored scale in view to facilitate the control of the vacuum’s grade in the “connect” position
• Reserve vacuum tank in tropicalized iron
• Electric-powered self governing luminous acoustic alarm system completed of battery charger
| Product Type | Handling & Storage Equipment |
|---|---|
| Material | Engineered Stone, Glass, Granite, Limestone, Marble, Neolith, Onyx, Porcelain & Ceramic, Quartzite, Sintered Stone, Travertine |
| Lifting Capacity | 625kg |
| Length | 1850mm |
| Height | 865mm |
| Number of Pads | 3 |
| Pad Size | 2x450x300mm, + 1x450x200mm |
| Weight | 62kg |
| Brand | Manzelli Liftstyle |
