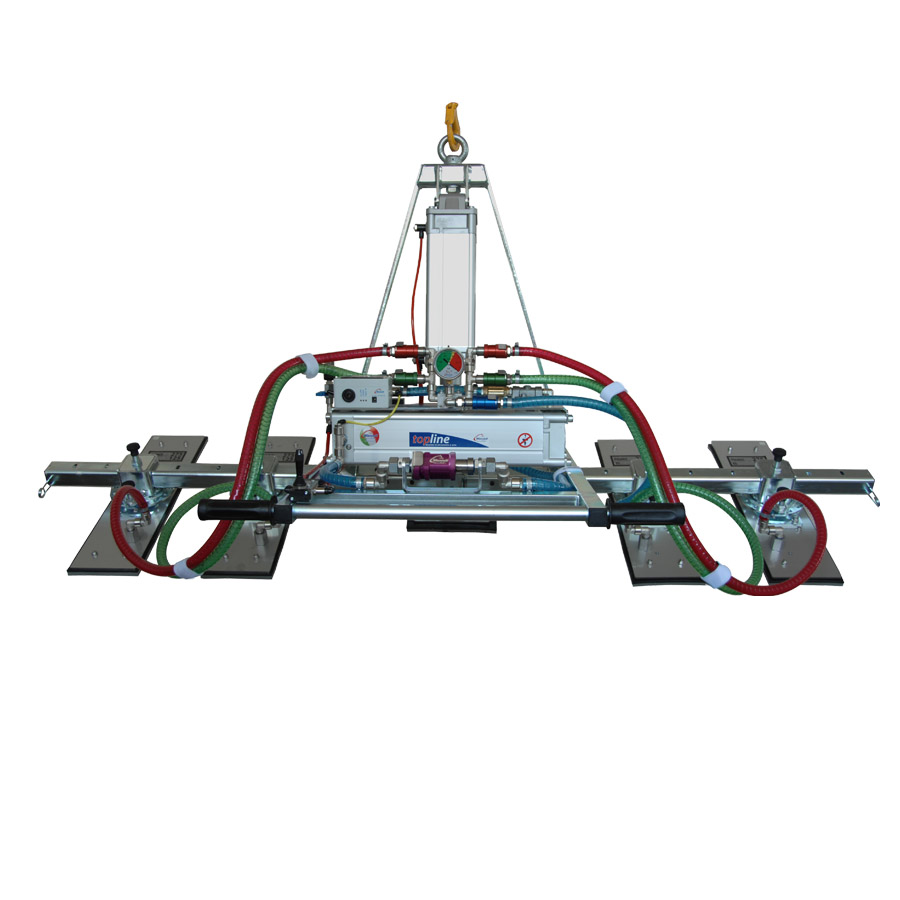

Manzelli Vacuum Lifter VAM 5PN-530 TKL SG
Capacity from 500 to 1000kg / Pneumatic tilting from 0° to 90°
• Powered with compressed air ejector with aluminium silencer
• Exercise pressure for rotation 6 Bar
• Operating pressure 3.5 bar for creating vacuum
• Air consumption 95l/min
• Welded steel structure
• Plates and counter suction plates in stainless steel
• Plate connection and disconnection by means of slider valve in anodised aluminium locking in the “connect position”
• Vacuum gauge in stainless steel dipped in glycerine with coloured scale in view to facilitate the control of the vacuum’s grade in the “connect” position
• Reserve aluminium vacuum tank
• Electric-powered self governing luminous acoustic alarm system with solar panels completed of battery charger
| Product Type | Handling & Storage Equipment |
|---|---|
| Material | Engineered Stone, Glass, Granite, Limestone, Marble, Neolith, Onyx, Porcelain & Ceramic, Quartzite, Sintered Stone, Travertine |
| Lifting Capacity | 500kg |
| Length | 2310mm |
| Height | 870mm |
| Number of Pads | 4 |
| Pad Size | 450x200mm |
| Weight | 90kg |
| Brand | Manzelli Liftstyle |
