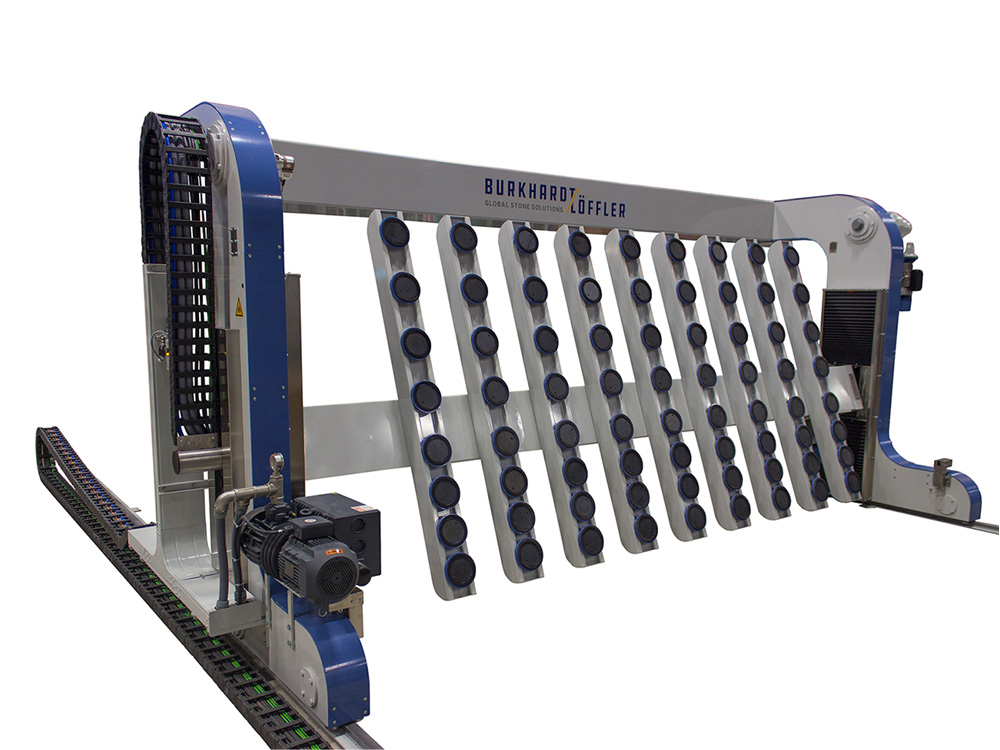

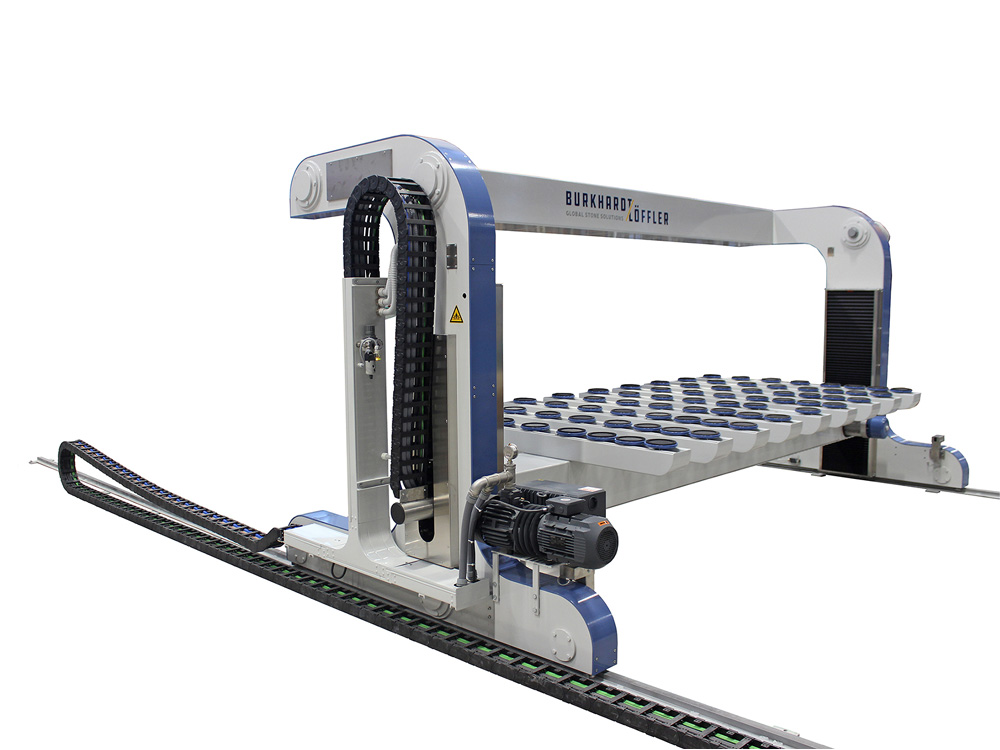

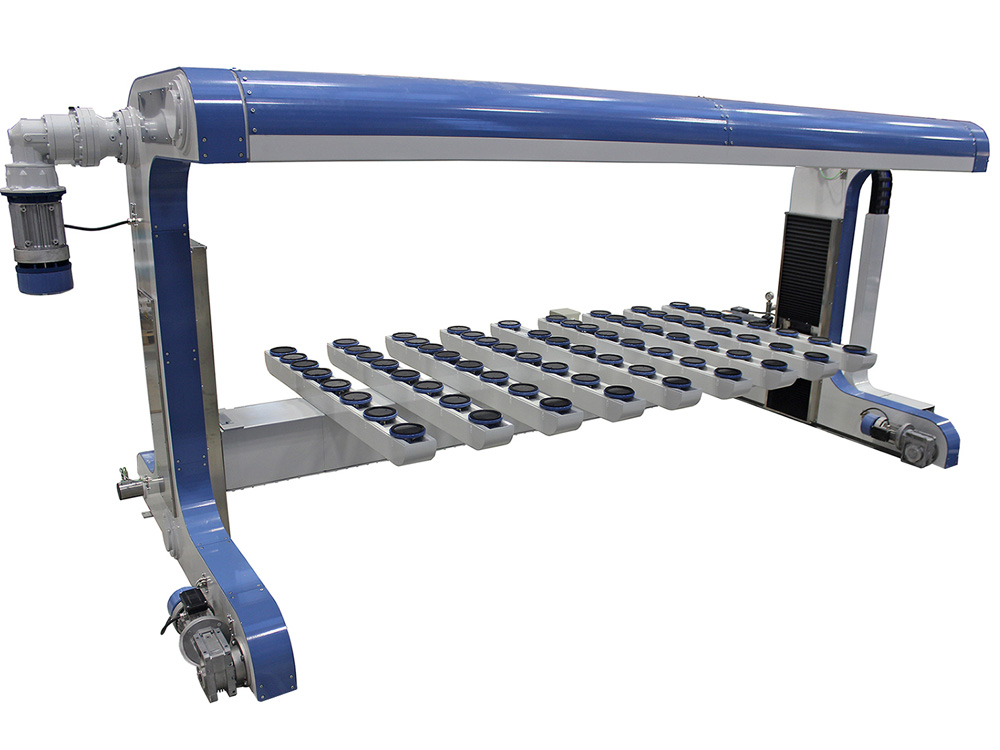

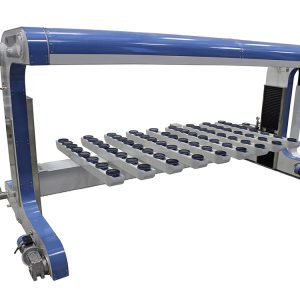

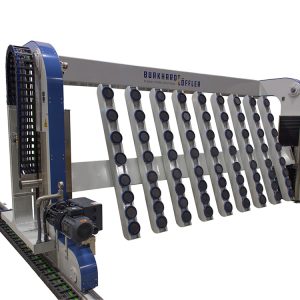

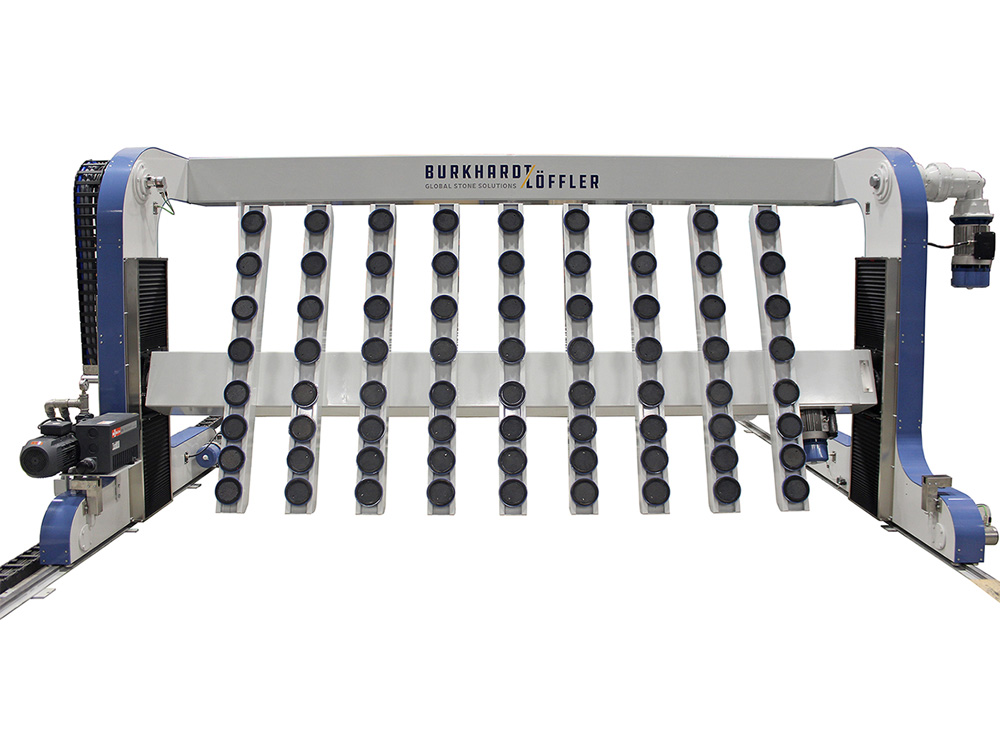

Burkhardt PMA 3000 Portal Manipulator

The overhead Portal Manipulator retrieves vertical slabs from an A-frame. Slabs of irregular shape or of different size formats can be handled with the incorporated flexible vacuum pods. The reduction in time lost due to manual handling, when compared to automatic loading, leads to increased production efficiencies.

Workpiece length: 1.500 – 3.000 mm
Slab width: 600 – 1.800 mm
Max. slab weight: 800kg
No. of vacuum pod sections: 4
